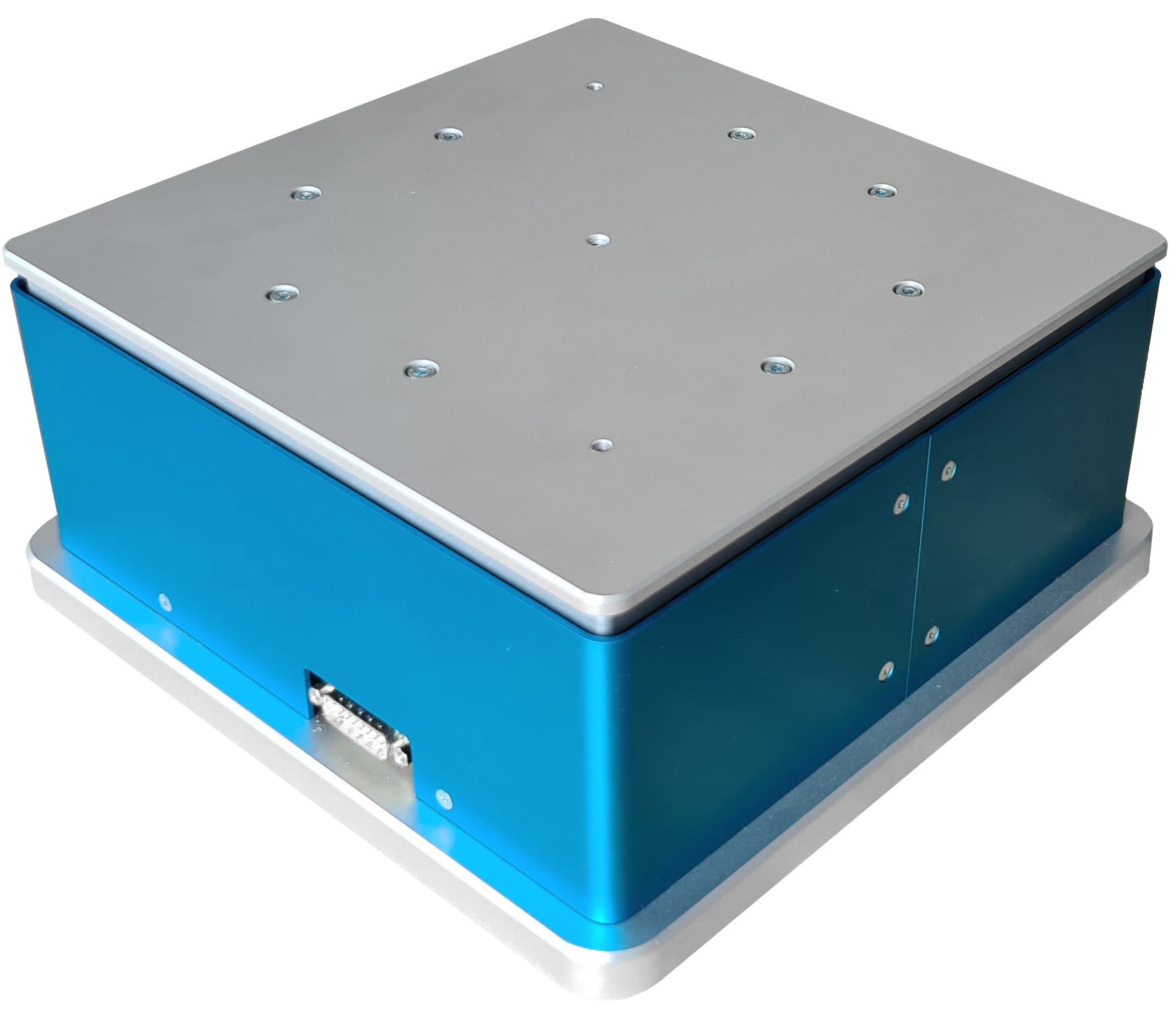

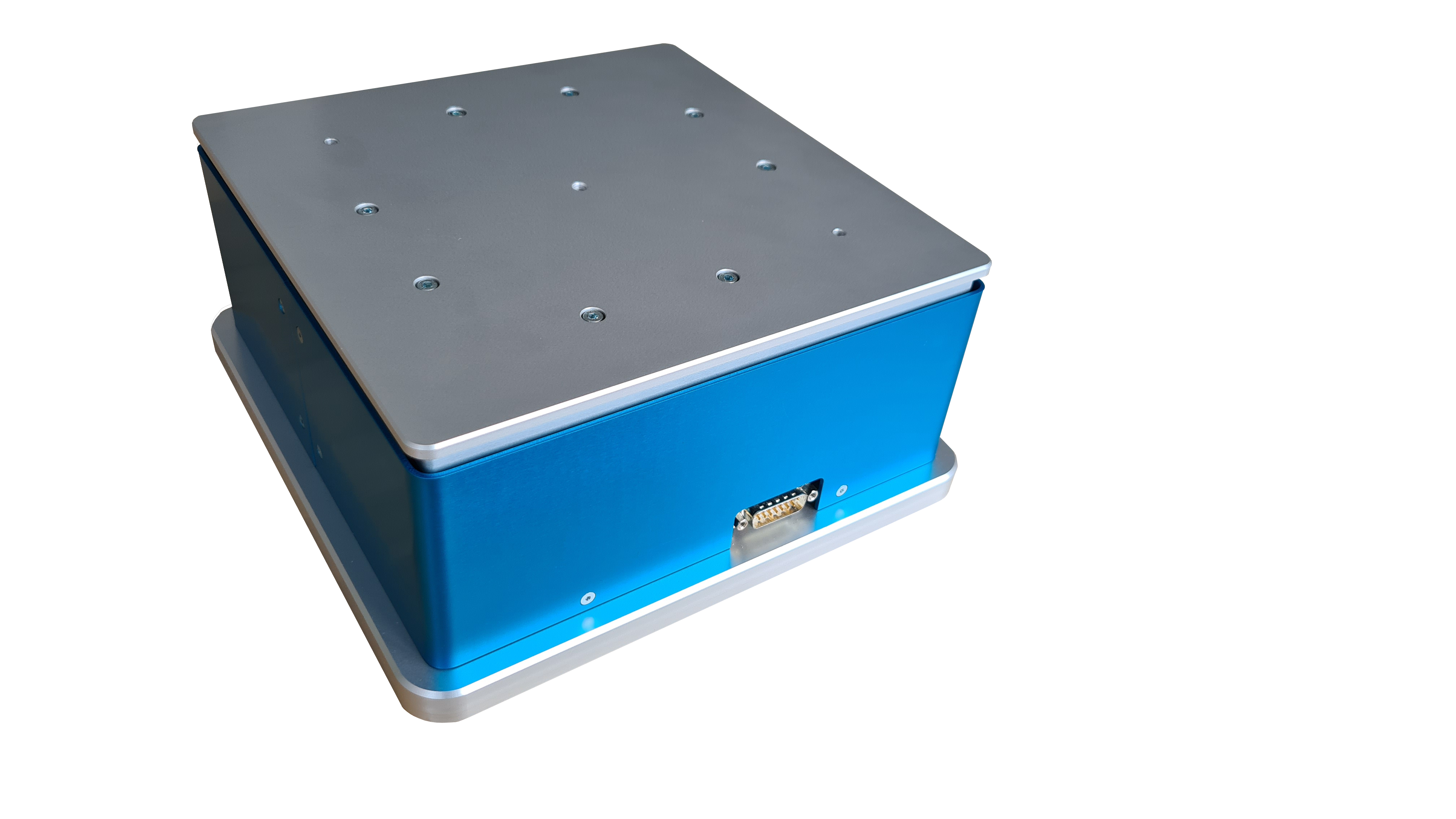

AVC1200 :
The most advanced modular vibration isolation solution

The AVC1200 is the newest addition to our vibration isolation family and offers unrivalling performance.Coming Soon

The latest exciting development from Table Stable!
A 6-axis modular system offering isolation down to 0.1 Hz vertically and 0.2 Hz horizontally. We achieve an isolation performance of -20dB at 1 Hz and greater than -35dB beyond 10Hz. This system uses feedback only, and therefore isolates both against floor vibrations and forces fed into the load – unlike feedforward systems which only isolate against floor vibrations. Each module is capable of supporting up to 400 kg. Load adjustment is controlled electrically.

Coming SoonDefault configuration:
 3 units and control unit
Payload: 1200 kg

  • Main features

    • Active Isolation capabilities:
      0.1 Hz vertically/ 0.2Hz horizontally - 200Hz in all 6 degrees of freedom (purely passive beyond 200Hz)
    • Seismometer sensor and piezoelectric actuator technology
    • Settling time: < 10ms
    • Performance (Reduction of incoming vibrations):
      1Hz > -20dB (90% reduction)
      10Hz > -35dB (98% reduction)
    • No Setup-time/calibration during day-to-day operation (only one-time initial weight-calibration required)
    • Motor control of load adjustment
    • No air required
    • No low frequency resonance
    • Low power technology (21W for 4 modules)
      • no heating up
      • strongly reduced power consumption
      • no electromagnetic disturbances

  • Applications

  • Sizes

    Currently the AVC-1200 is available in the following sizes:

     Model Dimensions Max. Load
    AVC-1200 230 x 230 x 110 mm³ 1200 kg

    Custom sizes available on request

  • Technical Specification

    Isolation Dynamic: 0.1Hz - 200Hz
    purely passive beyond 200Hz
    Transmissibility
    Correction Forces
    Static Compliance
    Maximum load 1200 kg (single unit: 400 kg)
    Dimensions (single unit): Top plate :
    230 x 230 mm

    Bottom plate :
    250 x 250 mm

    Height :
    110 mm
    Weight (single unit):

    A2CU Controller

    Safety class 1
    Power consumption Typically 21 W
    Input voltage 90-125VAC / 200-250VAC +/- 10% , 50 - 60 Hz
    Overload 8 LEDs indicate overload in input stages
    Monitor signal A multiplexed signal for display on oscilloscopes shows vibration levels with and without isolation - for diagnostic purposes only
    Rackmount Also available as rackmountable version

    Normal Environmental Conditions

    Protection class IP 20
    Temperature range 5°C - 40°C
    Relative humidity 10-90 % (5-30 °C) / 10-60 % (30-40 °C)
    Application Indoor
    Altitude Up to 2000 m (6.500 ft)

  • Downloads

    Manuals



    Infomaterial



    CAD Models



    Please contact us if you need more information.
