AVI Controller

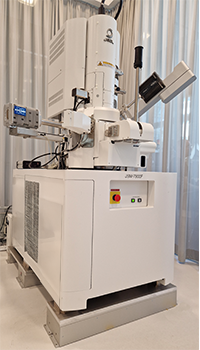

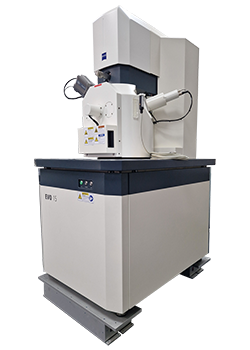

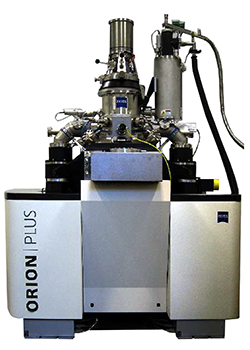

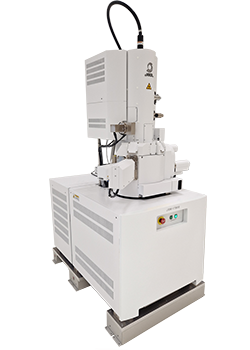

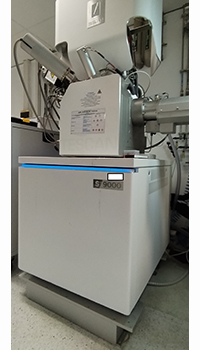

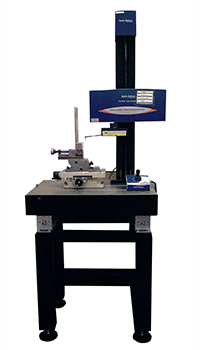

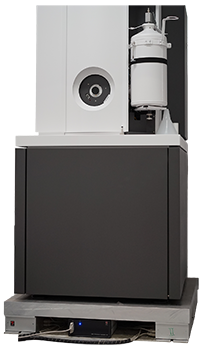

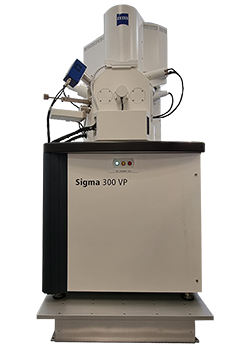

Each antivibration setup comes with an AVI controller box. The AVI Series controllers provide the power to drive the isolation modules. They control the activation/deactivation of active vibration isolation and provide feedback on the overload levels of any of the isolation modules connected. A different controller model is required depending on the number of isolators in the system. If necessary, several controller units can be combined into one antivibration setup.

Models

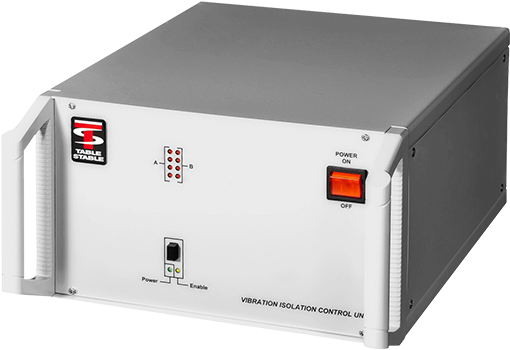

A2CU

Short controller with 2 inputs:

2 single units (AVI-200/2/LP)

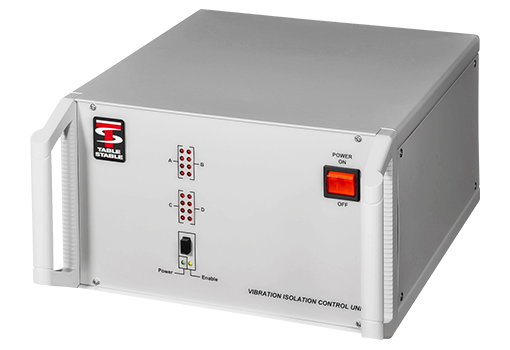

A4CU

Short controller with 4 inputs:

2 double units (AVI-400/2/LP) or

4 single units (AVI-200/4/LP)

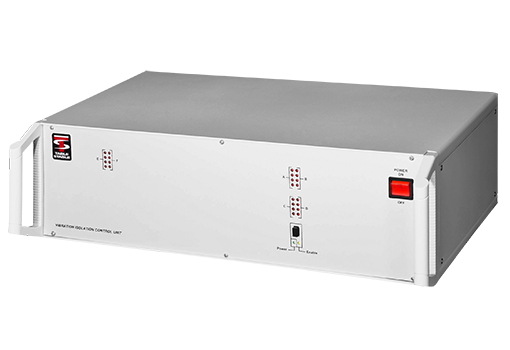

B6CU

Long controller with 6 inputs:

2 triple units (AVI-600/2/LP) or

3 double units (AVI-400/3/LP) or

6 single units (AVI-200/6/LP)

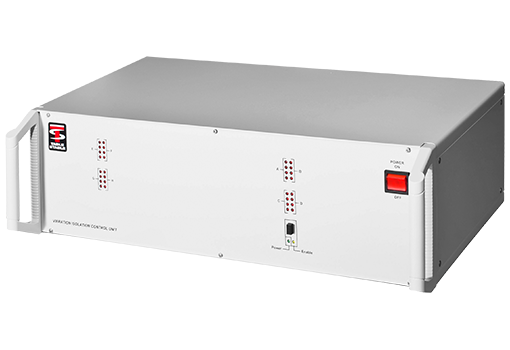

B8CU

Long controller with 8 inputs:

2 triple, 2 single units (AVI-600/2/LP + AVI-200/2/LP) or

4 double units (AVI-400/4/LP) or

8 single units (AVI-200/8/LP)

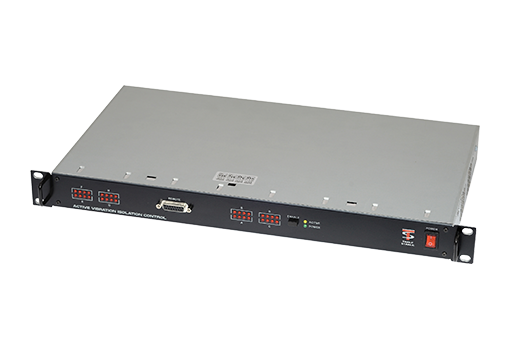

AVI-C Controller 4

Same as A4CU, but with rackmount form factor

B8CU

Same as B8CU, but with rackmount form factor

Size

Model	Dimensions	Control capabilities ( AVI 200 single units )
A2CU	235x245x145mm³ (WxDxH)	max. 2 units
A4CU	235x245x145mm³ (WxDxH)	max. 4 units
B6CU	470x245x145mm³ (WxDxH), 19"	max. 6 units
B8CU	470x245x145mm³ (WxDxH), 19"	max. 8 units
AVI-C Controller 4	1U x 19" x 290mm (HxWxD)	max. 4 units
AVI-C Controller 8	1U x 19" x 290mm (HxWxD)	max. 8 units

Several control units can be combined into one antivibration setup.

Technical Specification

Safety class	1
Power consumption (typical average)	9 W (A2CU) 18 W (A4CU) 27 W (B6CU)
Input voltage	90-125VAC / 200-250VAC +/- 10% , 50 - 60 Hz
Fuses	2x 1.6A/250V slow. Located in the power socket on the rear side of the control unit
Overload	8 LEDs (A2CU) 16 LEDs (A4CU) 24 LEDs (B6CU)
Monitor signal	A multiplexed signal for display on oscilloscopes shows vibration levels with and without isolation - for diagnostic purposes only
